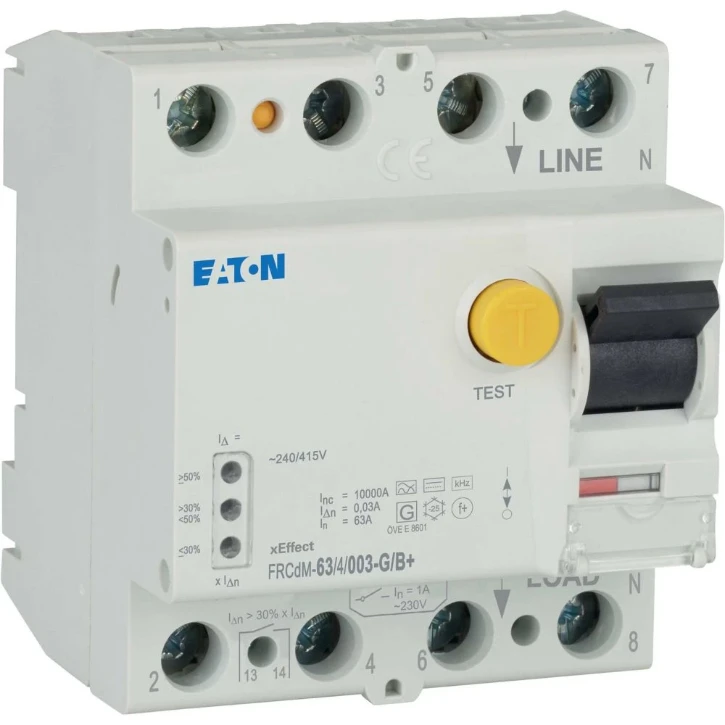

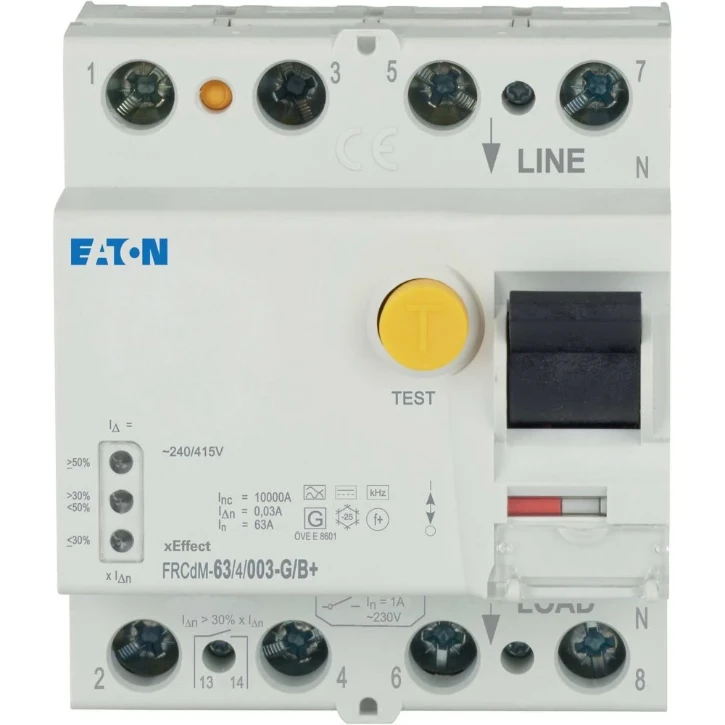

Residual current circuit breaker (RCCB) Eaton xEffect
Add to selection
General information
Ordercode YESSS
6029-8740
Product code
167882
EAN code
4015081644568
Product group
Residual current circuit breaker (RCCB)
Brand
Eaton
Serie
xEffect
Type
FRCDM-63/4/003-G/B+
Digitaler FI-Schalter, allstromsensitiv, 63 A, 4p, 30 mA, Typ G/B+
Digitaler FI-Schalter, allstromsensitiv, 63 A, 4p, 30 mA, Typ G/B+
Product description
Residual current circuit-breaker FRCdM, 4 pole, Rated current In: 63 A, Rated short-circuit strength Icn: 10 with back-up fuse kA, Rated fault current IΔN: 0.03 A, Switchgear for industrial and advanced commercial applications
Product specifications
Number of poles
4
Rated current
63 A
Rated fault current
0.03 A
Leakage current type
B+
Rated voltage
415 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Width in number of modular spacings
4
Selective protection
Yes
Short-circuit breaking capacity (Icw)
10 kA
Built-in depth
70.5 mm
Additional equipment possible
Yes
Mounting method
DIN rail
With interlocking device
Yes
Frequency
50 Hz
Surge current capacity
3 kA
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 60 °C
Short-time delayed tripping
Yes
Pollution degree
2
Connectable conductor cross section multi-wired
1.5 - 16 mm²
Connectable conductor cross section solid-core
1.5 - 35 mm²
Voltage type
AC
Explosion-proof
No
RAL-number (similar)
7035
