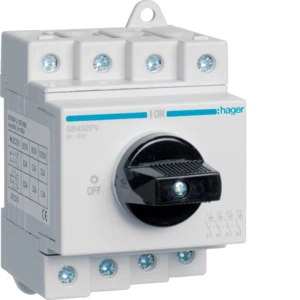

Switch disconnector (AC) Hager
Add to selection
General information
Ordercode YESSS
0278-4293
Product code
SB432PV
Product group
Switch disconnector (AC)
Brand
Hager
Type
SB432PV
Ausschalter DC, 4-polig, 1000V, 32A
Ausschalter DC, 4-polig, 1000V, 32A
Product description
Ausschalter DC 4-polig 1000V 32A.Lasttrennschalter für die Montage auf Hutschiene oder Montageplatte, Drehantrieb direkt am Gerät im AUS-Zustand mit einem Vorhängeschloss verriegelbar. Gewährleistet das Ein- und Ausschalten unter Last und eine Sicherheitstrennfunktion bei PV Anlagen mit max. 1000 V und 32A.
Product specifications
Rated permanent current Iu
32 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Number of switches
1
Number of poles
4
Version as main switch
Yes
Rated operating voltage
1000 - 1000 V
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Short rotary handle
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Colour control element
Black
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width
60 mm
Height
85 mm
Depth
72 mm
Width in number of modular spacings
3.5
