High bay luminaire Regiolux
Add to selection
General information
Ordercode YESSS
0506-5736
Product code
37440124110
EAN code
4020863336425
Product group
High bay luminaire
Brand
Regiolux
Type
worker-WOHB/0700 IP54 14600 840 ET
Hallenleuchte, Individual.Lens.Optic
Hallenleuchte, Individual.Lens.Optic
Product description
Stahlblechgehäuse pulverlackiert, rechteckiger Querschnitt, mit stabilen Stahlstirnseiten, Gehäuserückseite mit integrierten Einziehmuttern zur Befestigung des Zubehörs für Deckenmontage und Kettenabhängung von außen. Lichtverteilung direkt breitstrahlend mittels Individual.Lens.Optic aus Kunststoff PMMA, UGR (4H/8H) 22.3. Treiber integriert. Elektrischer Anschluss über 2,3m lange Anschlussleitung 3x1,0mm².
Product specifications
Lamp type
LED not exchangeable
Housing material
Steel
Type of control gear
LED operating device current-controlled
Suitable for auxiliary lamp
No
With control gear
Yes
Degree of protection (IP)
IP54
Lamp holder
None
Suitable for number of light sources
1
Voltage type
AC
Dimming 0-10 V
No
Suitable for emergency lighting
No
Nominal voltage
230 - 230 V
Nominal current
426 - 426 mA
Dimming 1-10 V
No
Dimming DALI
No
Housing colour
White
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off (trailing edge)
No
With protective cover
No
Dimming phase cut-on (leading edge)
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Reflector
None
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No

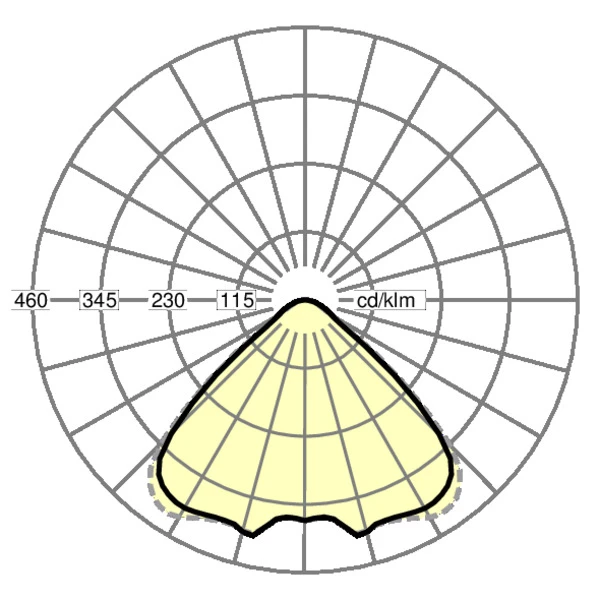

Light distribution
Symmetric
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Length
688 mm
Dimming Touch and Dim
No
Width
340 mm
Dimming Zigbee
No
Height/depth
59 mm
Dimming with push-button
No
Protection class according to IEC 61140
I
Impact strength
IK03
Light distributor
Focal lens
Beam angle
41-80° - Wide beam
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
With light source
Yes
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (NEMA)
Other
Filament test according to IEC 60695-2-11
None
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Suitable for lamp power
98 - 98 W
Max. system power
98 W
Type of wiring
Ending
Number of poles
3
Connection type
Other
Exchangeable control gear
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
12
Max. number of luminaires per miniature circuit breaker C16 (MCB)
20
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
No
Reflector colour
Other
Photobiological safety according to EN 62471
Other
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
